ACT HD Street Clutch Kit w/ Sprung Disc | 92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL (HC5-HDSS)
92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Heavy Duty Street Clutch Kit by ACT
This kit features ACT's Heavy Duty pressure plate paired with their organic sprung street disc.
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Features
- Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
- Life: Longer friction life, extended by ACT's exclusive diaphragm design
- Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
- Recommended Use: Recommended for street and race use
- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Benefits
- Torque Capacity (ft/lbs): 235 ft/lbs
- Torque Capacity (% Over OE): 44%
Applications
- 1992 - 2005 Honda Civic
- 1992 - 1998 Honda Civic Si
- 1993 - 1997 Honda Civic Del Sol
- 1997 - 2005 Acura EL

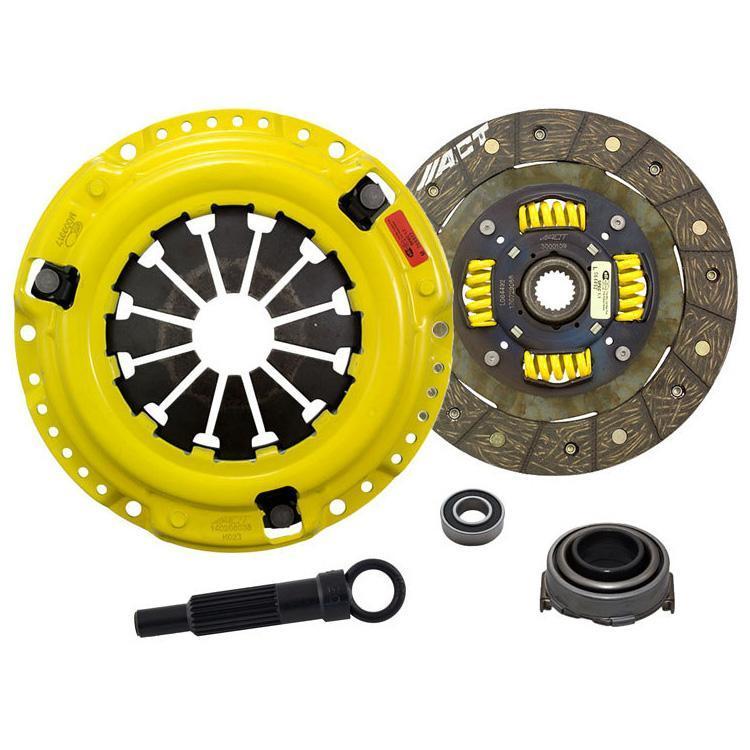

What's In The Box?
- 1 - Heavy Duty Pressure Plate
- 1 - Sprung Street Disc
- 1 - Release Bearing
- 1 - Pilot Bearing
- 1 - Alignment Tool
References
Warranty
- ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
